ID # 19440974

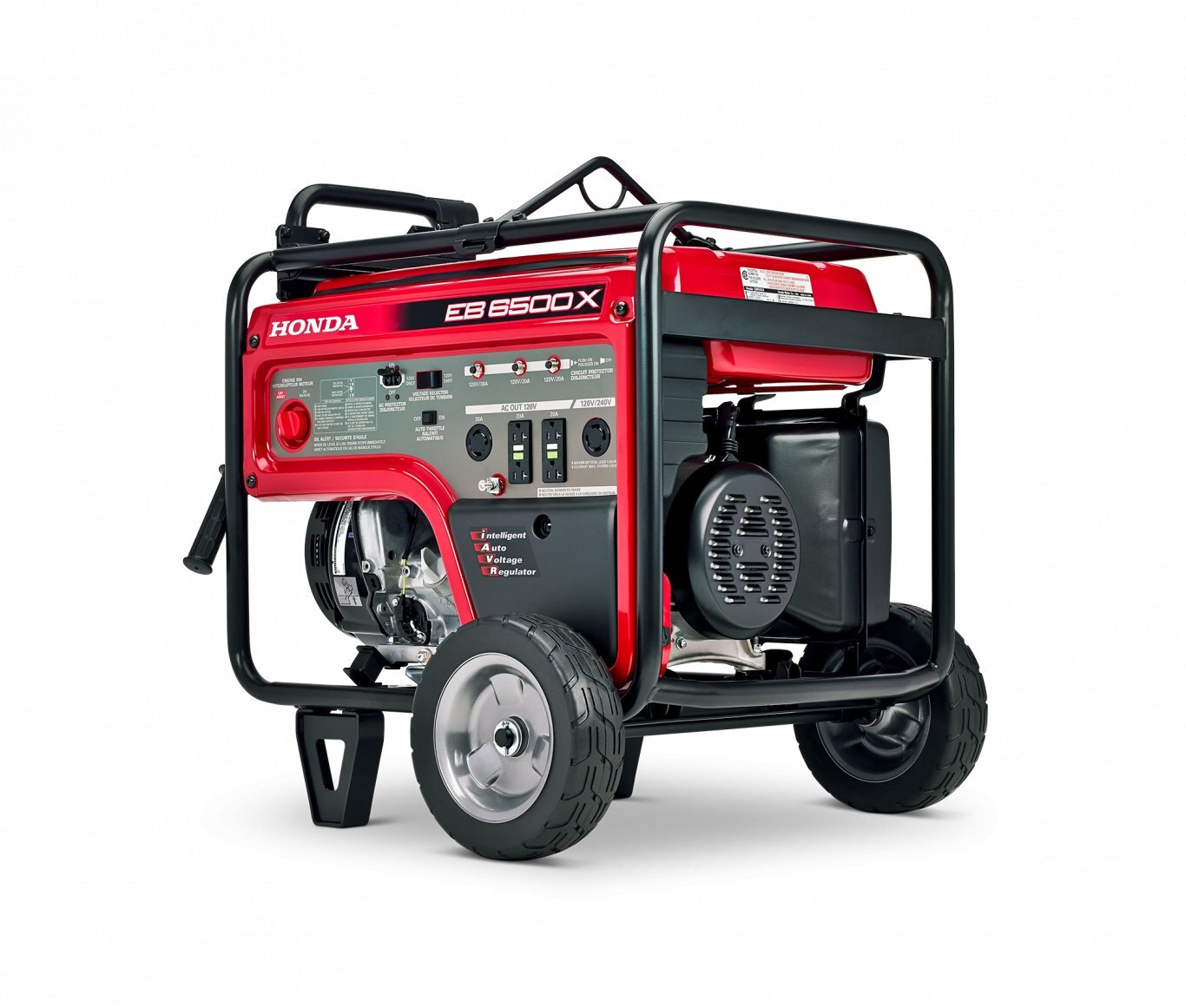

Honda Commercial 6500 GFCI EB6500XCT2

Call for Price
+ Freight and PDI

Commercial 6500 GFCI


The EB6500 has premium features for industrial usage and general purpose applications in commercial and rental situations.

Sale Type
Engine Size
389 cc
Dry Weight
97.2 kg (214.3 lbs.)
AC Voltage Available
120 / 240
Cold Climate Technology
Approximate Running Time (hrs.) / Tankful
6.9** / 10.4****
6,500 Watts Maximum AC Output
Powerful, Easy-start Honda IGX390 Commercial-grade Engine
Hanger Kit/lifting Eye For Easier Moving Around The Job Site
Cold Climate TechnologyTM Aids Continuous Running In Cold Weather Conditions
Auto-throttle Further Extends Running Time By Automatically Adjusting Engine Speed To Idle When Under No Load
Standard Wheel Kit With Positive Lock Folding Handles For Easy Transportation And Convenient, Compact Storage
Dual Voltage Power With Premium Features And GFCI (Ground Fault Circuit Interrupter) Protection On Duplex Receptacles
Honda Exclusive IAVR (Intelligent Auto Voltage Regulation) System For Stable Power Delivery And Available Extra Wattage (7,000 Watts For 10 Seconds To Start Larger Equipment)
Voltage Selector Switch Allows Both 120 V And 240 V Output, Or Total Generator Output To Be Available Through Any Of The 120 Volt Outlets, Limited Only By The Capacity Of The Individual Outlet For Powering Devices With Larger Wattage Requirements.
Generator Type
Brush type
Frequency (Hertz)
Maximum AC Output (Watts)
Automatic Voltage Regulator
Standard iAVR (Intelligent Automatic Voltage Regulator)
Maximum Continuous AC Output (Watts)
5,000 7,000 (iAVR)
Max. Rated AC Amperage @ 120 V / 240 V
45.8 / 22.9 (58.3 / 29.2 for 10 sec. iAVR)
Common Duplex Receptacle Specifications
40 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 20 amps available from each GFCI duplex receptacle.
Ground Fault Circuit Interrupter (GFCI)
High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications
This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 22.9 amps (5.5 kVA) at 240 VAC continuously.
Engine Type
Honda iGX390T2 OHV, 4-stroke, air-cooled
389 cc
Auto Throttle
Starting System
Manual recoil
Fuel Tank Capacity
23.5 litres (5.17 Imp. gal.)
Remote Start Capability
Low Level Oil Alert System
additional information
** / ***
**At max. rated output (continuous) in Watts. ****At 50% rated output (continuous) in Watts.
Lifting Hook
Transport Wheels
2 Wheel standard
Height (With Lift-Hook)
773 mm (30.4 in.) standard
Height (Without Lift-Hook)
719 mm (28.3 in.)
Width (With Handles And Wheels)
706 mm (27.8 in.)
Length (With Handles And Wheels)
1,051 mm (41.4 in.)
Noise Level DB(A) (1.5 M To 7 M)
Width (Without Handles And Wheels)
530 mm (20.9 in.)
Rated Fuel Consumption (litres/hr)
Length (Without Handles And Wheels)
681 mm (26.8 in.)
Approximate Running Time (hrs.) / Tankful
6.9** / 10.4****
